The GWV SERIES Vacuum Powder Open-mouth Packing Machine are designed forthe hygienic bagging of powdery bulk materials such as milk powder / whey powder / lactose powders, baby food, chemicals, pharmaceuticals etc.
Brand:
GAOGEWarranty:
2 YearsCertification:
ISO CEPort:
Ningbo/Shanghai/GuangzhouPackaging Details:
Wooden Case

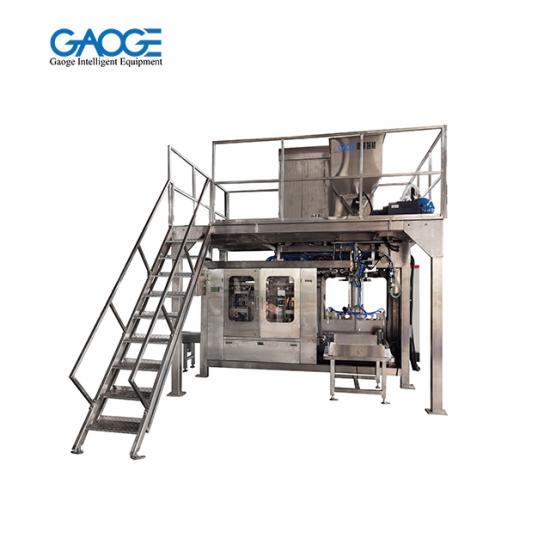

The GAOGEPAK GWV SERIES Vacuum Powder Packing Machine are specially designed for the hygienic bagging of powdery bulk materials such as milk powder / whey powder / lactose powders, baby food, chemicals, pharmaceuticals etc. Our patented bottom-up filling technology features high filling accuracies, an open or closed bag-top transport unit, quick and simple cleaning, fast change-over times and minimised dust emission.
After the bag placement, the filling spout moves the bag down the vertical filling screw during the filling cycle. A minimum distance between the filling point of the vertical filling screw and the product in the bag is maintained to significantly minimise the dust emission and reduce the product aeration. The vertical screw is frequency / servo control driven, allowing all powdery products to be filled hygienically, accurately and quickly.
High weighing accuracy (up to +/- 40 g), 30 grams with servo controlled dosing and 20 gram with post dosing station
Optimised dust control
Field proven technology for high system availability
Bag-top remains closed during bag transportation (if variant for closed bag transport has been selected)
No machine fasteners in the critical product contact zones
All product contact parts hygienically welded
Control area separated from the functional bagging zone
Cables to integral control centres run at the rear of each machine module
Customised system configurations
Excellent machine accessibility for cleaning and maintenance
Compact, sturdy design
User-friendly touch control panel with integrated graphical user interface
Large bag magazine for long production runs
Options：
All common types of bag closing devicesInert gas packing
Servo-controlled dosing
Stainless steel construction
ATEX compliant design
All common types of bag closing devices
Extra positions for empty bag piles
Product sampler
Product de-aeration
Bag turning
Closed bag push off
Full stainless steel design
|
Model |
GW-450 |
|
Applicable materials |
granular（good liquidity) |
|
Weighing range |
5 to 50kg (10lb to 110lb) |
|
Bag Matirical |
Woven bag, kraft paper bag, PE bag |
|
Bag Type |
One line pocket, M side pocket |
|
Speed |
3 to 16 bags/min |
|
Ambient temp |
-10°C to +45°C |
|
Electrical |
380V/50Hz, 3phase or customized per specification |
|
Power |
3KW |
|
Air Pressure & Consumption |
0.7Mpa, 0.6 M3／min |
|
Bag size(mm) |
L630-830mm x W 350-450mm |
|
Packing weight(kg) |
10-20kg/bag |
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Manual Bagging Equipment with electronic gross weighing system to meet international standards and provide high accuracy and reliability. The simple construction and sturdy design ensure safe and accurate operation.
Automatic bagging machines for open-mouthed bags. Ideal for packaging powdered products, fluidified and non in a wide range of formats.
Fish feeds dosing, weighing, bagging, packaging, palletizing machines from GaoGepak are accurate, fast and reliable.
The automated system illustrated below is an example of a complete line built with our salt bagging and packaging equipment. This line is equipped with a net weigh scale, an GW bagger, a conventional bag palletizer, and a stretch wrapper. No matter the scope of your project, GAOGE manufactures salt packaging equipment for small- and large-scale productions.
The automated system illustrated below is an example of a complete line built with our feed bagging and packaging solutions. This line is equipped with a net weigh scale, an GW bagger, a conventional bag palletizer and a stretch wrapper. No matter the scope of your project, GAOGE manufactures feed packaging equipment for small- and large-scale productions.
Open mouth bag fillers are very simple, fast filling and easy filling of both food grade and non-food grade materials. They are well suited for both manual and automated applications. Open mouth filling systems are ideal for hard to handle materials or products that are dry, free flowing and minimally dusty ranging from landscaping materials, feed, seed & fertilizer to food products.
The GW bagging machine is designed to fill and close pre-formed bags easily and reliably. Developed for medium and high production. It is the perfect solution for packaging Laundry Detergent Powder and similar products.
Coffee Weighing machines, Bagging machines, Packaging machines, Palletisers and Wrappers for coffee The packaging of coffee (granules, soluble or beans) is one of the most important phases in its production process. Good packaging guarantees maximum yield in terms of quality and aroma.
