The automated system illustrated below is an example of a complete line built with our feed bagging and packaging solutions. This line is equipped with a net weigh scale, an GW bagger, a conventional bag palletizer and a stretch wrapper. No matter the scope of your project, GAOGE manufactures feed packaging equipment for small- and large-scale productions.
Brand:
GAOGEWarranty:
2 YearsCertification:
ISO CEPort:
Ningbo/Shanghai/GuangzhouPackaging Details:

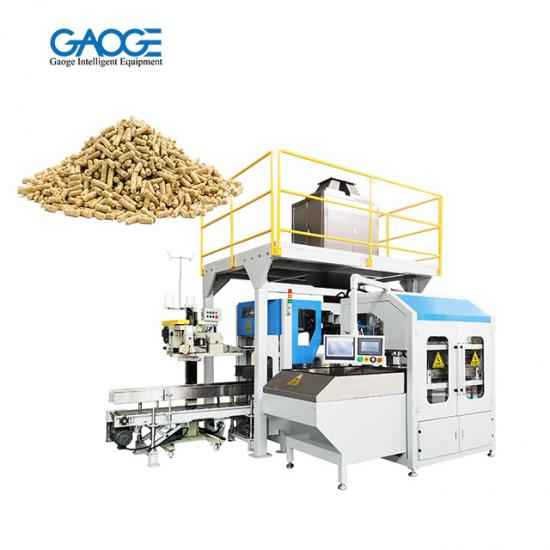

Wooden CaseGW is GAOGE's fully automatic bagging system, up to 1000 bags/hour, designed specifically to fill and close medium open-mouth and gusseted bags.
Its particularly compactsize means that the
machine can be installed in any existing production area.

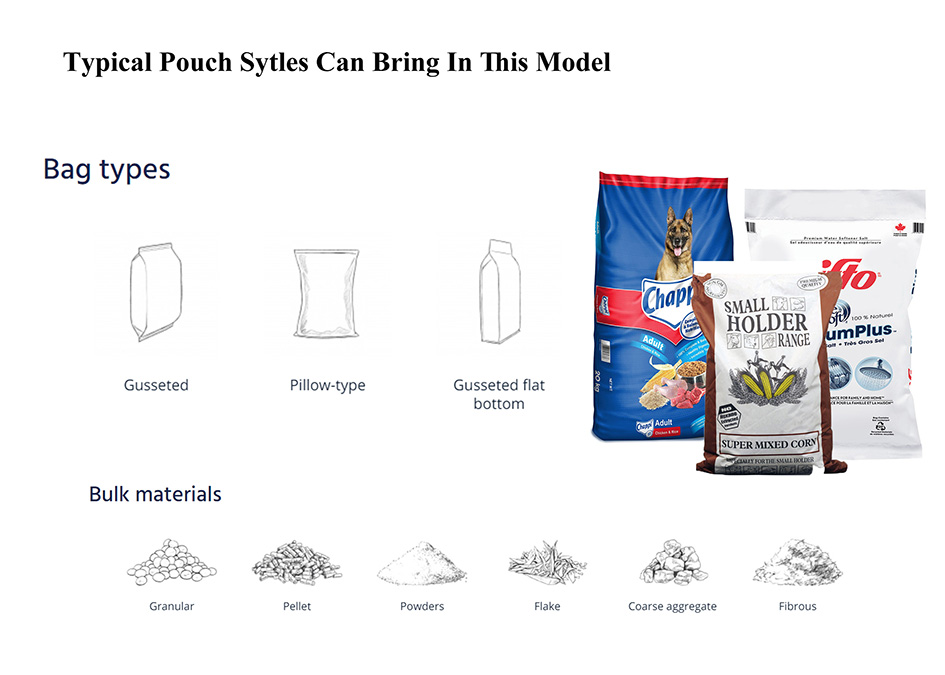

GAOGE also offers a semi-automatic packaging system equipped with a manual bagging scale. To achieve optimal bag quality or integrate special features and options, you can opt for an open-mouth bagging machine (for filling small-size, pillow-type or side-gusseted plastic bags) along with a robotic bag palletizer and a stretch wrapper. Pinch bottom bag closers/sealers from VFFS are also available. Feed bagging and packaging machines from GAOGE are accurate, fast and reliable.
* The automatic packaging machine can pack
granular and powder materials into premade open mouth bags automatically, It
can realize automatic bag feeding, bag opening, bag loading, products filling, bag
sealing and others.
*The packed bag is well sealed, suitable
for packing powder and granule, like feed, pet food, seed, rice, salt, fertilizer,
etc.
*Friendly human-machine interface (HMI), it
can providing complete fault diagnosis and solution, and quick switching of
working modes for packing different characteristics materials.
* Controlled by the color touch screen(Siemens),
and has real-time online detection function, which is convenient for different
users
* Stable and reliable running, convenient
maintenance
* Compact design ideal for restricted
packaging rooms
* Individual bag pick-up and opening
* Empty bag (with or without gusset) transfer to filling mouth
* Bag hermetic fastening on filling mouth
* Bag filling (product discharge from scale or dozer) and vibrating
* Closing system: Thermo-sealing and/or multiple sewing, fold and glued etc.
Options：
All common types of bag closing devices
Product de-aeration
Remote control panel
Bag turning
Closed bag ‘push off’ (top or bottom first)
Full stainless steel design
|
Model |
GW-650 |
|
Applicable materials |
granular（good liquidity) |
|
Weighing range |
5 to 50kg (10lb to 110lb) |
|
Bag Matirical |
Woven bag, kraft paper bag, PE bag |
|
Bag Type |
One line pocket, M side pocket |
|
Speed |
3 to 16 bags/min |
|
Ambient temp |
-10°C to +45°C |
|
Electrical |
380V/50Hz, 3phase or customized per specification |
|
Power |
3KW |
|
Air Pressure & Consumption |
0.7Mpa, 0.6 M3／min |
|
Bag size(mm) |
L 900-1100mm x W 550-650mm |
|
Packing weight(kg) |
40-50kg/bag |
