Open Mouth Bagging Machine

Manual Bagging Machines

Manual Bagging Machines

Thanks to its deep knowledge in the field of bagging scales, GAOGEPAK is one of the most important manufacturers of manual bagging machines for bags heavier than 5 kg.

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

  • Bag Shape

Thanks to its deep knowledge in the field of bagging scales, GAOGEPAK is one of the most important manufacturers of manual bagging machines for bags heavier than 5 kg. Its wide range of manual bagging machines can use either net weigh or gross weigh scales depending on your needs. GAOGEPAK's manual bagging machines can also handle a variety of open-mouth bags, including paper bags, polywoven bags, polyethylene bags, etc.


Feature:

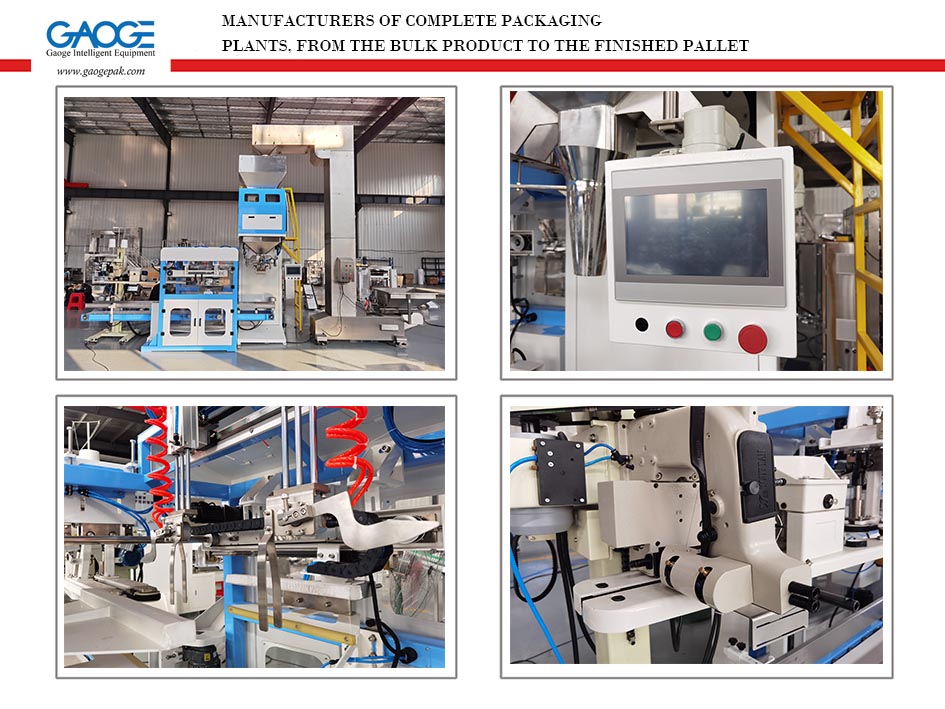

GAOGEPAK has developed a semiautomatic model to fill and close paper, polywoven, polyethylene bags, using a system that permits optimum safety for the bagging operator.


The operator inserts the bag mouth onto a shaping device that gives it the proper shape for subsequent insertion on the product discharge outlet.


When the operator removes his hands from the danger zone of the machine, a mechanical arm picks the bag up from the shaping device and places it under the bag-holder.


The bag-mouth closing station follows. A safety device prevents the mechanical arm from being activated until the operator has left the danger zone around the machine.


The SEMIAUTOMATIC GW can be coupled with either net or gross weighers using gravity-, belt- or screw-feed systems, depending on the product to be bagged.



Model

GWB-600

Applicable materials

granulargood liquidity)

Weighing range

5 to 50kg (10lb to 110lb)

Bag Matirical

Woven bag, kraft paper bag, PE bag

Bag Type

One line pocket, M side pocket

Speed

3 to 10 bags/min

Ambient temp

 -10°C to +45°C

Electrical

380V/50Hz, 3phase or customized per specification

Power

5 KW

Air Pressure & Consumption

0.7Mpa, 0.6 M3min

Bag size(mm)

L700-950mm x W 500-600mm

Packing weight(kg)

10-50kg/bag
