Open Mouth Bagging Machine

FFS Tubular Form Fill and Seal Bagging Machine

FFS Tubular Form Fill and Seal Bagging Machine

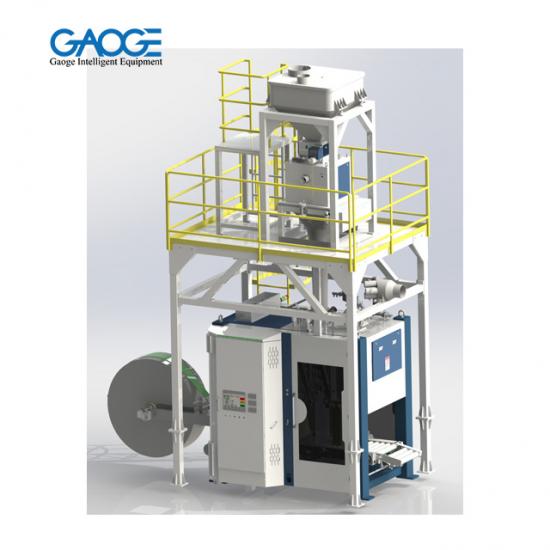

The FFS Bagging Machine Series Tubular Form, Fill, Seal Bagger provides a versatile, flexible, and economical packaging system for tubular film. It efficiently handles various free-flowing products from the industrial, chemical, and nutrition industries, including plastic pellets, resins, special polymers, fertilizers, and animal feed.

  • Brand:

    GAOGE
  • Warranty:

    2 Years
  • Certification:

    ISO CE
  • Port:

    Ningbo/Shanghai/Guangzhou
  • Packaging Details:

    Wooden Case
  • Machine Features

  • Specifications

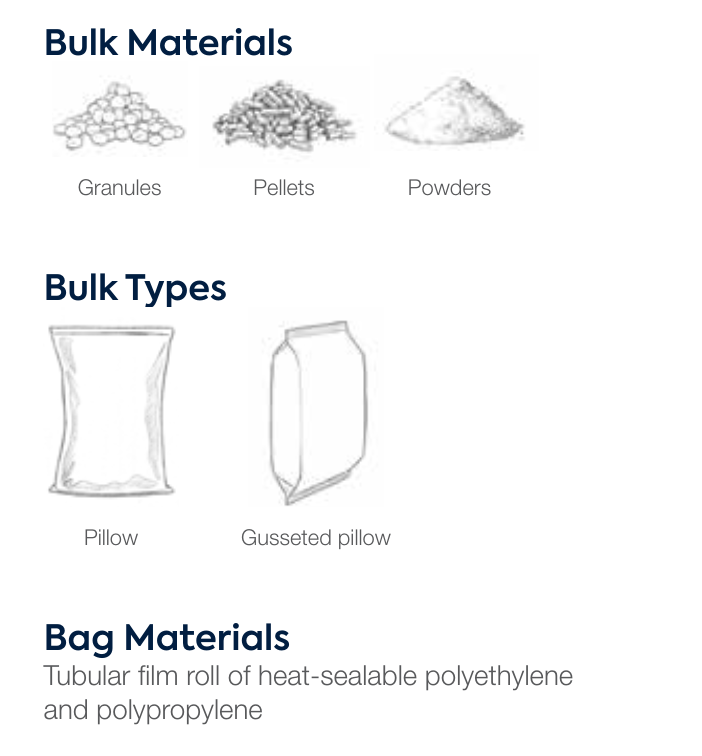

  • Bag Shape

Speed: up to 25 bags per minute (1500 bags per hour)*
Bulk materials: granules, pellets, powders
Bag types: tubular film
Bag materials: PE, PP, aluminum PP
Bag weight: 5Kg to 50 Kg
* Depending on application and machine configuration

The FFS Bagging Machine efficiently handles various materials. These include plastic pellets,resins, special polymers, granular steel, fertilizers,salts, nuts, granular food, and animal feed.


The FFS Bagging Machine Series Tubular Form, Fill, Seal Bagger provides a versatile, flexible, and economical packaging system for tubular film. It efficiently handles various free-flowing products from the industrial, chemical, and nutrition industries, including plastic pellets, resins, special polymers, fertilizers, and animal feed.
The FFS Bagging Machine Series provides fast-paced performance by simultaneously forming, filling, and sealing bags. It can adjust quickly for different bag lengths and widths and is adaptable to virtually any production capacity.
The installation is quick and easy, and the design allows full access to control, adjustment, and maintenance, all within a small footprint.



Feature:


  • Precise filling and fast-paced packaging
  • Automatic bag length adjustment
  • Intuitive touch screen HMI for simple operation and easy troubleshooting
  • Open design with easy access for cleaning and maintenance
  • Tool-free adjustment and part replacement
  • Integrated control cabinet for easy installation andminimal floor space usage
  • Low power and air construction



Options
Heating element with or without Teflon to seal bags
Perforated bag holes to facilitate air removal before palletizing
Top seal cleaning system
Integrated dust collection system
Label applicator, thermal transfer, or ink printing
Film wheel support for a second film roll with automatic positioning
Stainless steel construction for corrosive products
ATEX execution
White chamber application



Model

FFS-1500

Applicable materials

Granules Pellets and Powders

Weighing range

5 to 50kg (10lb to 110lb)

Bag Matirical

Tubular film roll of heat-sealable polyethylene and polypropylene

Bag Type

Pillow,Gusseted pillow

Speed

5 to 25 bags/min

Ambient temp

 -10°C to +45°C

Electrical

380V/50Hz, 3phase or customized per specification

Power

10KW

Air Pressure & Consumption

0.7Mpa, 0.6 M3min

Bag size(mm)

L630-900mm x W 350-450mm

Packing weight(kg)

10-50kg/bag
